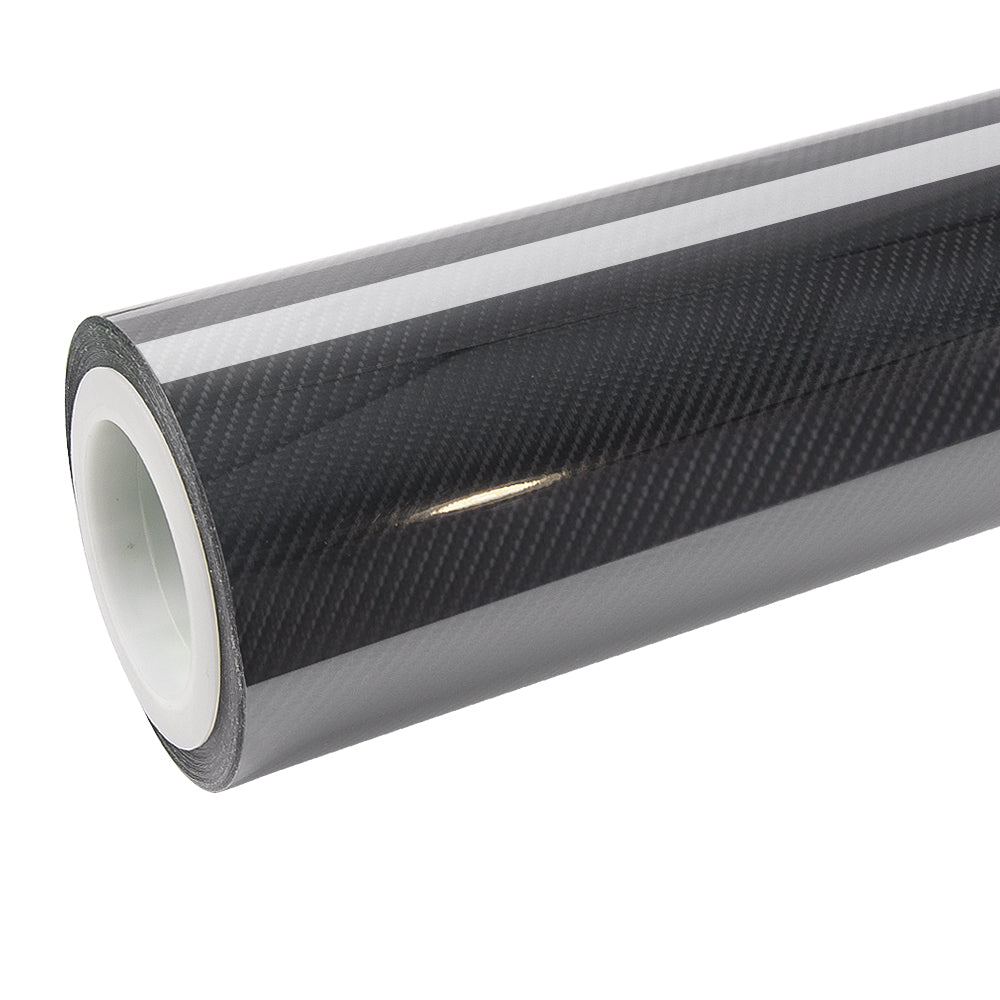

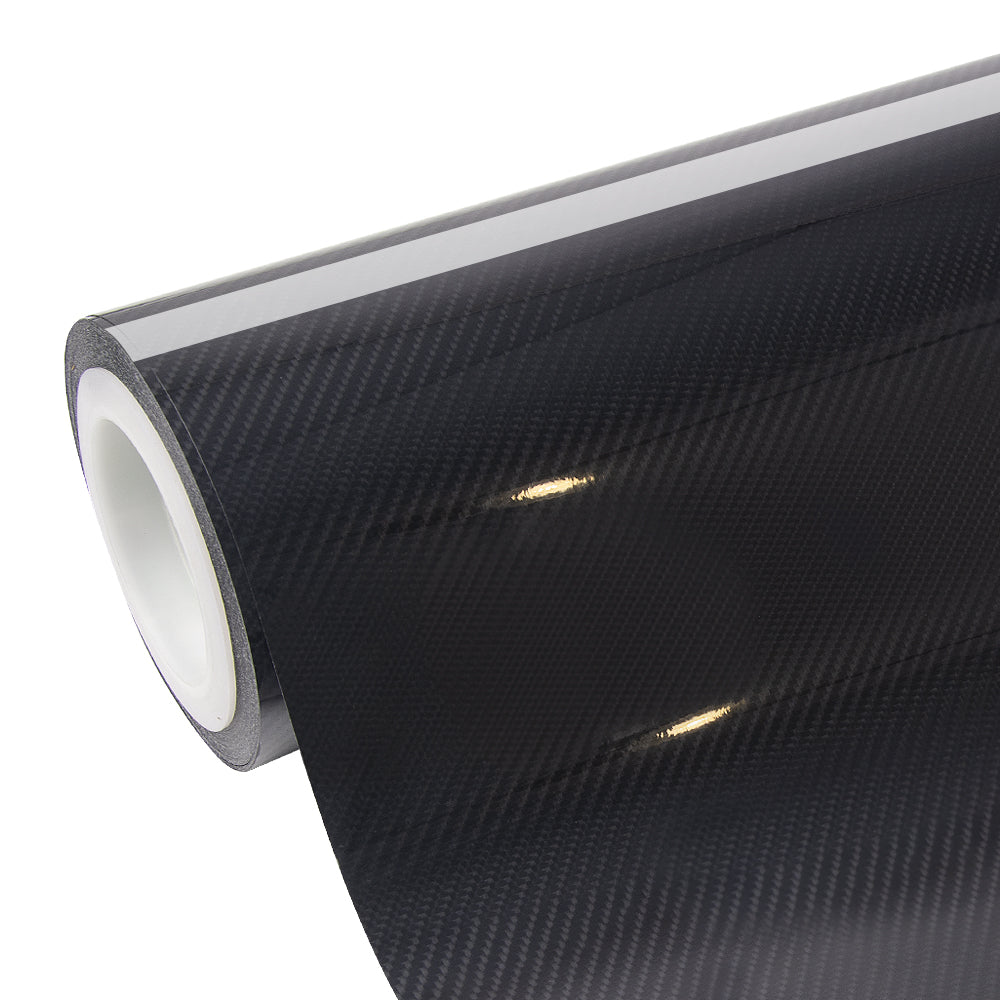

Glossy Spiral Black Carbon Fiber Vinyl Wrap

Glossy Spiral Black Carbon Fiber Vinyl Wrap

Regular price $83.00 USD
Regular price Sale price $83.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Size

Structure

Our products are made up of four layers. The outermost layer is the protection layer, which shields the vinyl underneath. Next is the high-grade polymeric vinyl, which is backed by a pressure-sensitive acrylic adhesive. The final layer is a high-quality 130um plastic liner.

Material

  • High-Grade Polymeric Calendared Vinyl Film
  • Fashionable, Stunning Color
  • With Air Release Channel
  • Bubble-free Application
  • Slideable; Repositionable

Medium Stretchable

The Maximum is 30 %

Functions

▲ Standard Size & Appearance

Classification Unit Spec Remark
Thickness
Surface materials um 120±2% High-grade PVC-Polymeric
Glue um 30±2% High-quality Solvent-based
Release liner um 180±2%(paper)/
130±2%(plastic)
Surface Opaque
Width mm 1520±0. 01%
Length mm 1800+1%



Physical properties

▲ General Properties

Features Test Method Results
Release force
N/25mm
25℃ and 50% 0.12
Initial tack
g/25mm
under 26℃ and 64%, GB31125-2014 1360
Peel Strength
N/25mm
25℃and 42%, GB/T2792-1998 7.05
Holding power(h) 25℃ and 50%, GB/T4851-1998 72.09
Shelf life stored in +10°C to +20°C, relative humidity 50%, in original package, away from direct sunlight, clean and dry place 2 years
Time Limits  Must use it within 3 Months after you receive the wrap film 3 Months
Application temperature / +20℃ to +30℃
Aging Test 1 7 days under 65°C No adhesive residue with heat
Aging Test 2 10 days under 65°C No adhesive residue without heat
Shrinkage / less than 4%



Recommended application tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, IRR heater
Application method: Standard methods for calendered films. No overstretching and overheating and Post heating is necessary.
Post-heating temperature: 110°C flat surfaces, 130°C curves, and overlaps
Aftercare: PH neutral, Avoid wax or solvents

CAUTION!
The images, colors, and finishes on the screen are approximate. For the real representation of the product always check the color swatch.
