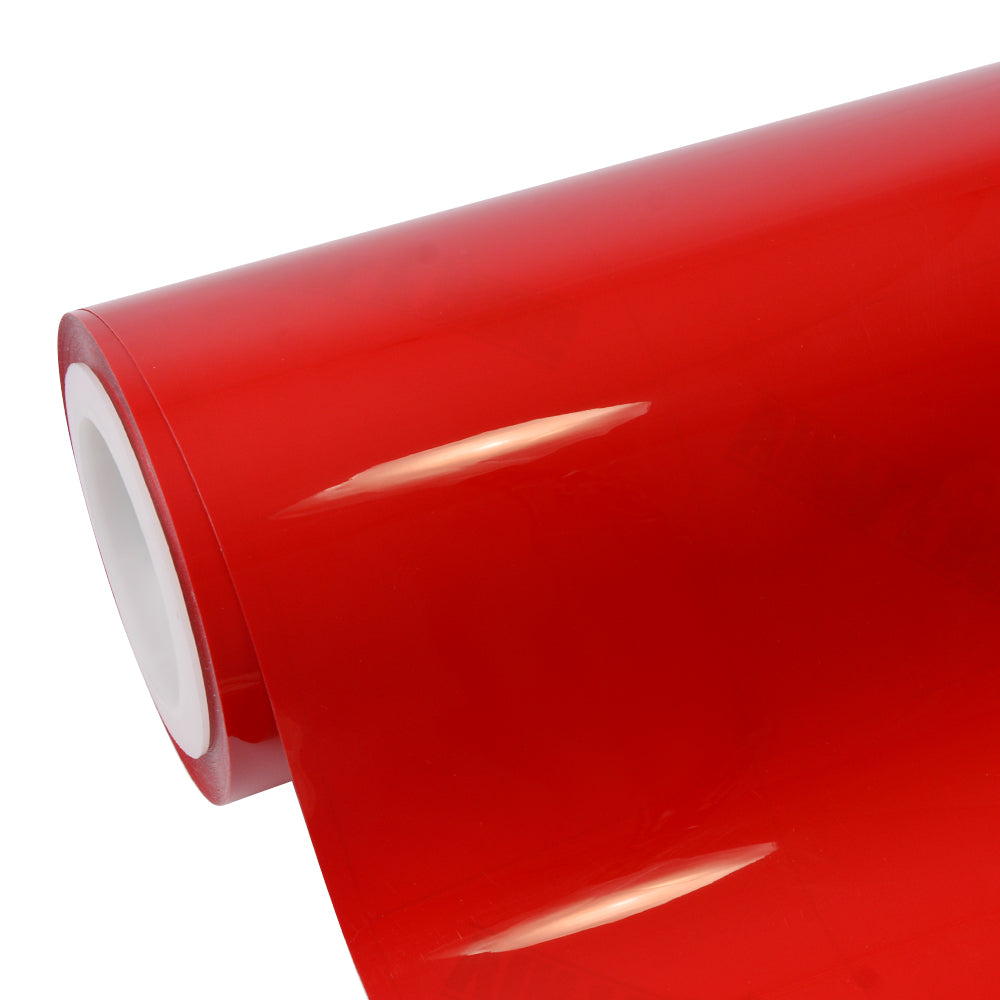

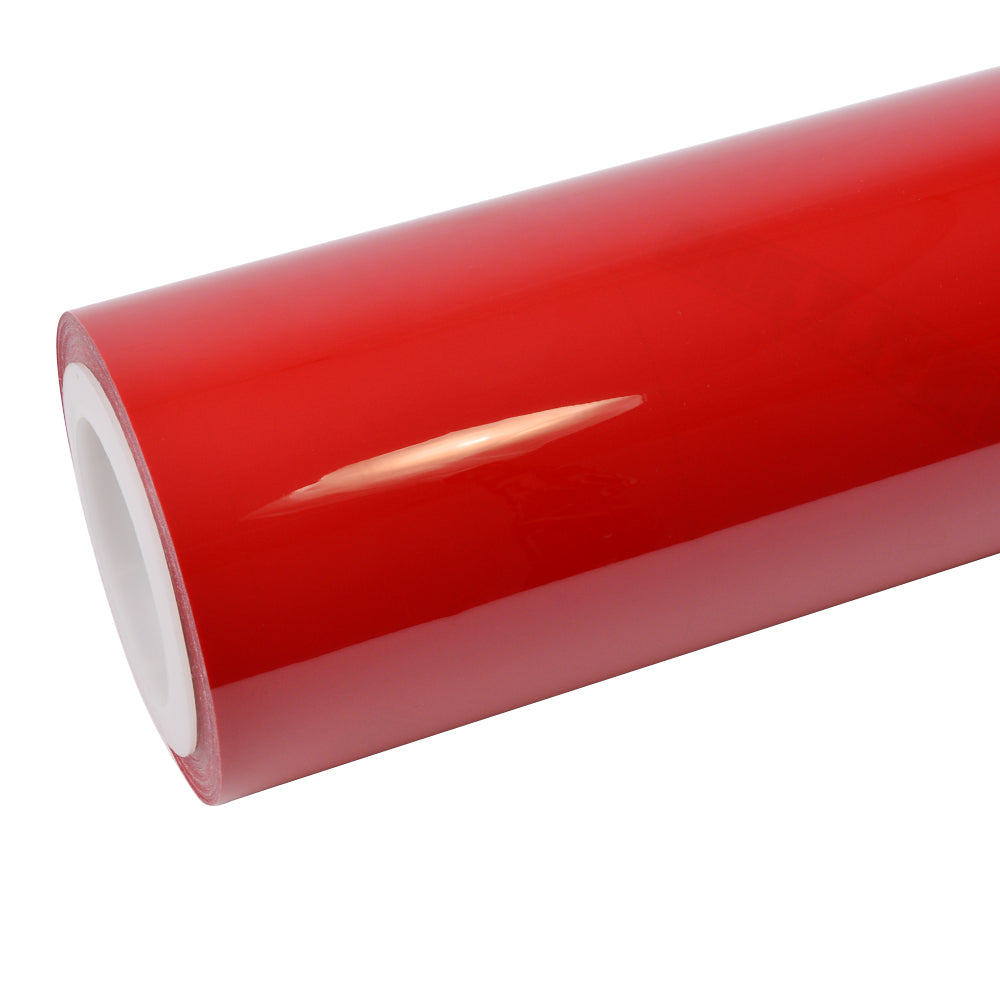

High Glossy Rouge Red Vinyl Wrap

High Glossy Rouge Red Vinyl Wrap

$61.00 USD
$61.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Size

Structure

Our products are composed of 4 layers, starting from the outer edge is 1st layer that is to protect the underneath vinyl and its called protection layer. After that the high grade polymeric vinyl supported with pressure sensitive acrylic adhesive. Lastly there is a layer of 160g double sided silicon coated release liner.

Material

  • High Grade Polymeric Calendared Vinyl Film
  • Fashionable, Stunning Color
  • With Air Release Channel
  • Bubble-free Application
  • Slideable; Repositionable

Medium Stretchable

The Maximum is 30 %

Functions

Recommended Uses

▲ Standard Size & Appearance
Classification Unit Spec Remark
Thickness Top protected film um 36±2% PET/PVC
Surface materials um 100±2% High-grade PVC-Polymeric
Glue um 30±2% High-quality Solvent-based
Release liner um 180±2%(paper)/
130±2%(plastic)		 －
Surface － Opaque －
Width mm 1520±0. 01% －
Length mm 1800+1% －



Physical properties

▲ General Properties

Features Test Method Results
Release force
N/25mm		 25℃ and 50% 0.12
Initial tack
g/25mm		 under 26℃ and 64%, GB31125-2014 987
Peel Strength
N/25mm		 25℃and 42%, GB/T2792-1998 7.25
Holding power(h) 25℃ and 50%, GB/T4851-1998 72.09
Shelf life stored in +10°C to +20°C, relative humidity 50%, in original package, away from direct sunlight, clean and dry place 2 years
Time Limits  Must use it within 3 Months after you receive the wrap film 3 Months
Application temperature / +20℃ to +30℃
Aging Test 1 7 days under 65°C No adhesive residue with heat
Aging Test 2 10 days under 65°C No adhesive residue without heat
Shrinkage / less than 4%



Features of Glossy Rouge Red Vinyl Wrap

  • High Glossy Finish
  • Excellent Adhesion
  • Easy To Install
  • UV Resistant

Recommended application tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, IRR heater
Application method: Standard methods for calendered films. No overstretching and overheating and Post heating is necessary.
Post-heating temperature: 110°C flat surfaces, 130°C curves, and overlaps
Aftercare: PH neutral, Avoid wax or solvents

CAUTION!

We will peel off the protection layer before shipment if your order is 1m,3m or 5m in order to make the vinyl good for shipping.

The images, colors, and finishes on the screen are approximate. For the real representation of the product always check the color swatch.
